ELAJ DC POWER PLUG -  RIGHT ANGLE, STRAIGHT, DIN PLUG, MINI FIT POWER

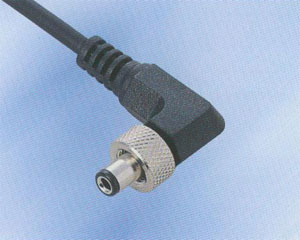

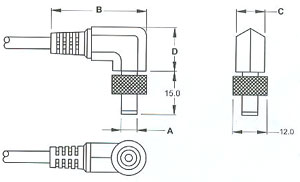

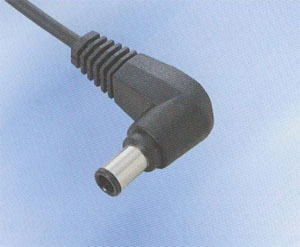

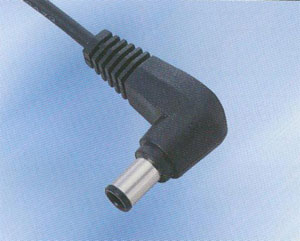

RIGHT ANGLE (LOCKING TYPE) RIGHT ANGLE TYPE
MONO PLUG MONO JACK
MONO PLUG MONO JACK
MODEL NO. DESCRIPTION

DIMENSIONS
　   A B C D
EIAJ-R/A (LT)-6530 6.5 X 3.0 6.5 33.0 10.0 15.0
EIAJ-R/A (LT)-6330 6.3 X 3.0 6.3 33.0 10.0 15.0
EIAJ-R/A (LT)-5525 5.5 X 2.5 5.5 33.0 10.0 15.0
EIAJ-R/A (LT)-5521 5.5 X 2.1 5.5 33.0 10.0 15.0
EIAJ-R/A (LT)-5025 5.0 X 2.5 5.0 33.0 10.0 15.0
EIAJ-R/A (LT)-5021 5.0 X 2.1 5.0 33.0 10.0 15.0
EIAJ-R/A (LT)-47517 4.75 X 1.7 4.75 33.0 10.0 15.0
EIAJ-R/A (LT)-4017 4.0 X 1.7 4.0 33.0 10.0 15.0
EIAJ-R/A (LT)-34511 3.45 X 1.1 3.45 33.0 10.0 15.0
EIAJ-R/A (LT)-23507 2.35 X 0.7 2.35 33.0 10.0 15.0
MODEL NO. DESCRIPTION

DIMENSIONS
　   A B C D
EIAJ-R/A -6530 6.5 X 3.0 6.5 35.2 19.0 12.5
EIAJ-R/A -6330 6.3 X 3.0 6.3 35.2 19.0 12.5
EIAJ-R/A -5525 5.5 X 2.5 5.5 35.2 19.0 12.5
EIAJ-R/A -5521 5.5 X 2.1 5.5 35.2 19.0 12.5
EIAJ-R/A -5025 5.0 X 2.5 5.0 35.2 19.0 12.5
EIAJ-R/A -5021 5.0 X 2.1 5.0 35.2 19.0 12.5
EIAJ-R/A -47517 4.75 X 1.7 4.75 35.2 19.0 12.5
EIAJ-R/A -4017 4.0 X 1.7 4.0 35.2 19.0 12.5
EIAJ-R/A -34511 3.45 X 1.1 3.45 35.2 19.0 12.5
EIAJ-R/A -23507 2.35 X 0.7 2.35 35.2 19.0 12.5

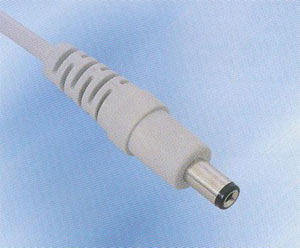

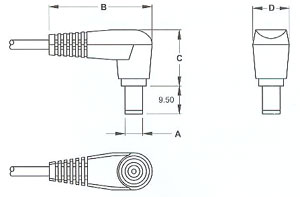

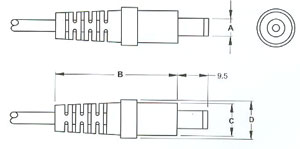

RIGHT ANGLE TYPE STRAIGHT TYPE
STEREO PLUG STEREO JACK
STEREO PLUG STEREO JACK
MODEL NO. DESCRIPTION

DIMENSIONS
　   A B C D
EIAJ-DCPWRPLG 6.0 X 1.4 0.236
(5.00)		 1.378
(35.0)		 0.748
(19.0)		 0.4925
(12.5)
EIAJ-DCPWRPLG 5.0 X 1.0 0.1965
(6.00)		 1.378
(35.0)		 0.748
(19.0)		 0.4925
(12.5)
MODEL NO. DESCRIPTION

DIMENSIONS
　   A B C D
EIAJ-(ST)-6530 6.5 X 3.0 6.5 37.8 10.0 11.8
EIAJ- (ST)-6330 6.5 X 3.0 6.5 37.8 10.0 11.8
EIAJ- (ST)-5525 5.5 X 2.5 5.5 37.8 10.0 11.8
EIAJ- (ST)-5521 5.5 X 2.1 5.5 37.8 10.0 11.8
EIAJ- (ST)-5025 5.0 X 2.5 5.0 37.8 10.0 11.8
EIAJ- (ST)-5021 5.0 X 2.1 5.0 37.8 10.0 11.8
EIAJ- (ST)-47517 4.75 X 1.7 4.75 37.8 10.0 11.8
EIAJ- (ST)-4017 4.0 X 1.7 4.0 37.8 10.0 11.8
EIAJ- (ST)-34511 3.45 X 1.1 3.45 37.8 10.0 11.8
EIAJ- (ST)-23507 2.35 X 0.7 2.35 37.8 10.0 11.8

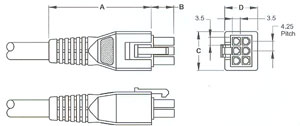

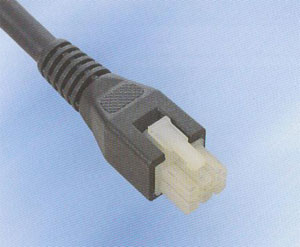

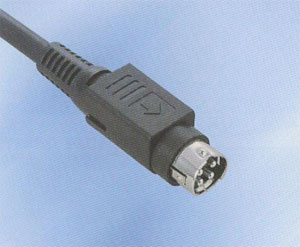

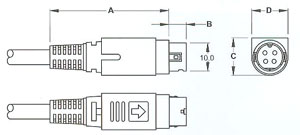

DIN PLUG (LOCKING TYPE) MINI FIT POWER CONNECTOR
STEREO PLUG STEREO JACK
STEREO PLUG STEREO JACK
MODEL NO. DESCRIPTION

DIMENSIONS
　   A B C D
DCPWRPLG-3P 3 PIN 1.693
(43.0)		 0.256
(6.50)		 0.5315
(13.5)		 0.512
(13.0)
DCPWRPLG-4P 4 PIN 1.693
(43.0)		 0.256
(6.50)		 0.5315
(13.5)		 0.512
(13.0)
MODEL NO. DESCRIPTION

DIMENSIONS
　   A B C D
MFPC-6P

3 POS

 1.7715
(45.0)		 0.384
(9.75)		 0.6695
(17.0)		 0.5805
(14.75)
