| Power Supply: PSU66 Series |
Desktop power supply
|
Feature:
|
|
||
Universal
input voltage
| Specifications: | PSU66 Series |
| Input voltage | 100-240 VAC (limits: 90-264VAC) |
| Input frequency | 47 to 63Hz |
| Input current | 1.6A (rms) for 115VAC, 1.2A (rms) for 230VAC |
| Safety ground leakage current | Class 1 (3.5mA) Class 2 (0.25mA) max @ 240 VAC 50 Hz |
| Output voltage | see rating chart (+/-5% tolerance) |
| Output current | see rating chart |
| Output power range | 66 Watts max |
| Ripple | 1% peak to peak maximum |
| Over voltage protection | Provided on outputs set at 112~132% of its nominal output voltage |
| Overcurrent protection | all outputs protected to short circuit conditions |
| Temperature coefficient | all outputs +/-0.04% /oC max |
| Transient response | max. excursion of 4% or better on all models recovering to 1% of final value within 500uS after a 25% step load change |
| Operating temperature | 0oC ~ +30oC |
| Storage temperature | -40oC to +85oC |
| Relative humidity | 5% to 95% non-condensing |
| Derating | derated from 100% at +40oC to 50% at 70oC |
| Efficiency | 65% minimum at full output |
| Hold-up time | 10 msec minimum |
| Line regulation | +/-1% maximum for any input voltage change between input voltage range |
| Load regulation | +/-5% variation from minimum to maximum output current |
| Insulation resistance | 50M ohm minimum from output to ground |
| Inrush current | 15 AMPS at 115 VAC, or 30 AMPS at 230 VAC at 25oC cold start |
| Withstand voltage | 4242 VDC from input to output |
| Meantime between failure | 50,000 hours minimum at full load at 25oC ambient |
| Emi requirements | meets conduction limits of CISPR 22.2 |
| Safety requirements | meets or exceeds:(a)UL 1950 (B)CSA C22.2 (C)TUV EN60950 (D)IEC 950 |
| Warranty | 1 year |

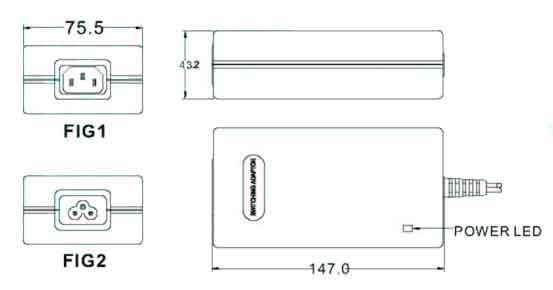

UNIT :mm
**Please specify output voltage when ordering
Note:
1.Weight: Approx 510-560g
2.Optional Output Connectors
|
|
