Power Supply: PSU15 Series

Desktop power supply

Feature:

Universal input voltage
Optional input inlets
Single Output
Pass LPS
Optional output connectors
Short circuit protection
High efficiency & reliability
Compact low profile package
One year warranty

Specifications: PSU15 Series
Input voltage 100-240 VAC (limits: 90-264VAC)
Input frequency 47 to 63Hz (Limits: 47-440Hx)
Input current 0.3A (rms) for 115VAC, 0.2A (rms) for 230VAC
Safety ground leakage current 0.25mA max @ 240 VAC 50Hz
Output voltage see rating chart (+/-5% tolerance)
Output current see rating chart
Output power range 15 Watts max
Ripple 1% peak to peak maximum
Over voltage protection N/A
Overcurrent protection all outputs protected to short circuit conditions
Temperature coefficient all outputs +/-0.04% /oC max
Transient response max. excursion of 4% or better on all models recovering to 1% of final value within 500uS after a 25% step load change
Operating temperature 0oC ~ +40oC
Storage temperature  -40oC to +85oC
Relative humidity 5% to 95% non-condensing
Derating derated from 100% at +40oC to 50% at 70oC
Efficiency 65% minimum at full output
Hold-up time 5 msec minimum
Line regulation +/-1% maximum for any input voltage change between input voltage range
Load regulation +/-5% variation from minimum to maximum output current
Insulation resistance 50M ohm minimum from output to ground
Inrush current 15 AMPS at 115 VAC, or 30 AMPS at 230 VAC at 25oC cold start
Withstand voltage 4242 VDC from input to output
Meantime between failure 50,000 hours minimum at full load at 25oC ambient
Emi requirements meets conduction limits of(a)FCC part 15 Class B (b) CISPR 22.2
Safety requirements meets or exceeds:(a)UL 60950-1 (B)CSA C22.2 (C)TUV EN60950-1 (D)IEC60 950
Warranty 1 year

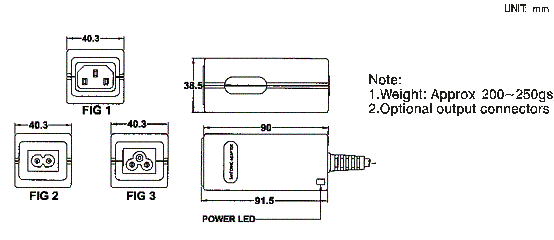

Model Output Voltage Output Current Maximum Output Power INPUT INLET
PSU15A-0 3~5VDC 2.4~1.44A 7.2W FIG1
PSU15A-1 5~6VDC 2.4~2.00A 12W FIG1
PSU15A-1-1 6~8VDC 2.00~1.50A 12W FIG1
PSU15A-2 8~11VDC 1.87~1.36A 15W FIG1
PSU15A-3 11~13VDC 1.36~1.15A 15W FIG1
PSU15A-4 13~16VDC 1.15~0.94A 15W FIG1
PSU15A-5 16~21VDC 0.94~0.72A 15W FIG1
PSU15A-6 21~27VDC 0.72~0.55A 15W FIG1
PSU15A-7 27~33VDC 0.55~0.45A 15W FIG1
PSU15A-8 33~48VDC 0.45~0.31A 15W FIG1
Model Output Voltage Output Current Maximum Output Power INPUT INLET
PSU15B-0 3~5VDC 2.4~1.44A 7.2W FIG2
PSU15B-1 5~6VDC 2.4~2.00A 12W FIG2
PSU15B-1-1 6~8VDC 2.00~1.50A 12W FIG2
PSU15B-2 8~11VDC 1.87~1.36A 15W FIG2
PSU15B-3 11~13VDC 1.36~1.15A 15W FIG2
PSU15B-4 13~16VDC 1.15~0.94A 15W FIG2
PSU15B-5 16~21VDC 0.94~0.72A 15W FIG2
PSU15B-6 21~27VDC 0.72~0.55A 15W FIG2
PSU15B-7 27~33VDC 0.55~0.45A 15W FIG2
PSU15B-8 33~48VDC 0.45~0.31A 15W FIG2
Model Output Voltage Output Current Maximum Output Power INPUT INLET
PSU15C-0 3~5VDC 2.4~1.44A 7.2W FIG3
PSU15C-1 5~6VDC 2.4~2.00A 12W FIG3
PSU15C-1-1 6~8VDC 2.00~1.50A 12W FIG3
PSU15C-2 8~11VDC 1.87~1.36A 15W FIG3
PSU15C-3 11~13VDC 1.36~1.15A 15W FIG3
PSU15C-4 13~16VDC 1.15~0.94A 15W FIG3
PSU15C-5 16~21VDC 0.94~0.72A 15W FIG3
PSU15C-6 21~27VDC 0.72~0.55A 15W FIG3
PSU15C-7 27~33VDC 0.55~0.45A 15W FIG3
PSU15C-8 33~48VDC 0.45~0.31A 15W FIG3
