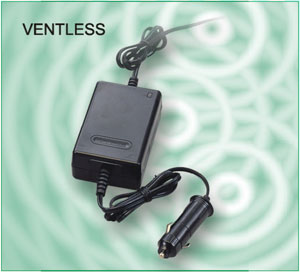

| Power Supply: PSD40 Isolation |
In car power supply
|
Feature:
|
|
||
Wide
input voltage 11VDC to 26VDC
NOTE:
1. Weight: Approx 200~250g
2. Optional output connectors:
| Model | Output Voltage | Output Current | Maximum Output Power |
| PSD40-0-I | 3~5VDC | 5.00~3.00A | 15W |
| PSD40-1-I | 5~6VDC | 4.50~3.75A | 22.5W |
| PSD40-1-1-I | 6~8VDC | 5.00~3.7A | 30W |
| PSD40-2-I | 8~11VDC | 4.27~3.10A | 34.2W |
| PSD40-3-I | 11~13VDC | 3.27~2.76A | 36W |
| PSD40-4-I | 13~16VDC | 2.76~2.25A | 36W |
| PSD40-5-I | 16~21VDC | 2.25~1.71A | 36W |
| PSD40-6-I | 21~27VDC | 1.71~1.33A | 36W |
| PSD40-7-I | 17~33VDC | 1.33~1.09A | 36W |
| PSD40-8-I | 33~48VDC | 0.75~0.75A | 36W |
