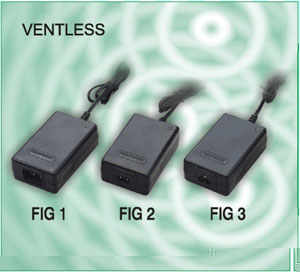

| Power Supply: MPU30 Series for Medical |
Desktop power supply
|
Feature:
|
|
||
Universal
input voltage
| Specifications: | MPU30 A. B. C. Series |
| Input voltage | 100-240 VAC (limits: 90-264VAC) |
| Input frequency | 47 to 63Hz (Limits: 47-440Hx) |
| Input current | 0.6A (rms) for 115VAC, 0.42A (rms) for 230VAC |
| Safety ground leakage current | 0.3mA max for CLASS 1 |
| Output voltage | see rating chart (+/-5% tolerance) |
| Output current | see rating chart |
| Output power range | 30 Watts max |
| Ripple | 1% peak to peak maximum |
| Over voltage protection | Provided on outputs set at 112~132% of its nominal output voltage |
| Overcurrent protection | all outputs protected to short circuit conditions |
| Over Temperature protection | 130oC Activated |
| Temperature coefficient | All outputs +/-0.04% /oC max |
| Transient response | Max. excursion of 4% or better on all models recovering to 1% of final value within 500uS after a 25% step load change |
| Operating temperature | 0oC ~ +40oC |
| Storage temperature | -40oC to +85oC |
| Relative humidity | 5% to 95% non-condensing |
| Derating | derated from 100% at +40oC to 50% at 70oC |
| Efficiency | 65% minimum at full output |
| Hold-up time | 10 msec minimum |
| Line regulation | +/-1% maximum for any input voltage change between input voltage range |
| Load regulation | +/-5% variation from minimum to maximum output current |
| Insulation resistance | 50 M ohm minimum from output to ground |
| Inrush current | 15 AMPS at 115 VAC, or 30 AMPS at 230 VAC at 25oC cold start |
| Withstand voltage | 5656 VDC from input to output |
| Meantime between failure | 50,000 hours minimum at full load at 25oC ambient |
| EMI requirements | Meets conduction limits of: CISPR 22.2 |
| Safety requirements | Meets or exceeds:(a)UL2601-1 (B)TUV EN60601-1 |
| Warranty | 1 year |

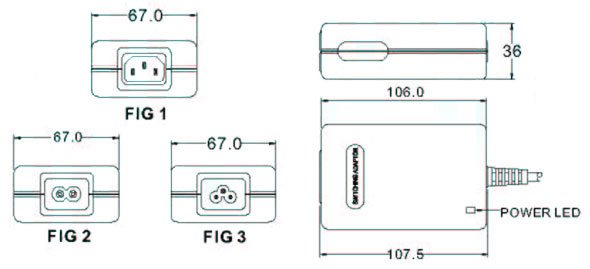

UNIT :mm
NOTE:
1. Weight: Approx 300~350g
2. Optional output connectors
**Please specify output voltage when ordering
| Model | Output Voltage | Output Current | Maximum Output Power | INPUT INLET |
| MPU30A-0 | 3~5VDC | 5.00~5.00A | 25W | FIG1 |
| MPU30A-1 | 5~6VDC | 5.00~4.17A | 25W | FIG1 |
| MPU30A-1-1 | 6~8VDC | 4.17~3.13A | 25W | FIG1 |
| MPU30A-2 | 8~11VDC | 3.75~2.73A | 30W | FIG1 |
| MPU30A-3 | 11~13VDC | 2.73~2.30A | 30W | FIG1 |
| MPU30A-4 | 13~16VDC | 2.30~1.88A | 30W | FIG1 |
| MPU30A-5 | 16~21VDC | 1.88~1.43A | 30W | FIG1 |
| MPU30A-6 | 21~27VDC | 1.43~1.11A | 30W | FIG1 |
| MPU30A-7 | 27~33VDC | 1.11~0.90A | 30W | FIG1 |
| MPU30A-8 | 33~48VDC | 0.90~0.63A | 30W | FIG1 |
| Model | Output Voltage | Output Current | Maximum Output Power | INPUT INLET |
| MPU30B-0 | 3~5VDC | 5.00~5.00A | 25W | FIG2 |
| MPU30B-1 | 5~6VDC | 5.00~4.17A | 25W | FIG2 |
| MPU30B-1-1 | 6~8VDC | 4.17~3.13A | 25W | FIG2 |
| MPU30B-2 | 8~11VDC | 3.75~2.73A | 30W | FIG2 |
| MPU30B-3 | 11~13VDC | 2.73~2.30A | 30W | FIG2 |
| MPU30B-4 | 13~16VDC | 2.30~1.88A | 30W | FIG2 |
| MPU30B-5 | 16~21VDC | 1.88~1.43A | 30W | FIG2 |
| MPU30B-6 | 21~27VDC | 1.43~1.11A | 30W | FIG2 |
| MPU30B-7 | 27~33VDC | 1.11~0.90A | 30W | FIG2 |
| MPU30B-8 | 33~48VDC | 0.90~0.63A | 30W | FIG2 |
| Model | Output Voltage | Output Current | Maximum Output Power | INPUT INLET |
| MPU30C-0 | 3~5VDC | 5.00~5.00A | 25W | FIG3 |
| MPU30C-1 | 5~6VDC | 5.00~4.17A | 25W | FIG3 |
| MPU30C-1-1 | 6~8VDC | 4.17~3.13A | 25W | FIG3 |
| MPU30C-2 | 8~11VDC | 3.75~2.73A | 30W | FIG3 |
| MPU30C-3 | 11~13VDC | 2.73~2.30A | 30W | FIG3 |
| MPU30C-4 | 13~16VDC | 2.30~1.88A | 30W | FIG3 |
| MPU30C-5 | 16~21VDC | 1.88~1.43A | 30W | FIG3 |
| MPU30C-6 | 21~27VDC | 1.43~1.11A | 30W | FIG3 |
| MPU30C-7 | 27~33VDC | 1.11~0.90A | 30W | FIG3 |
| MPU30C-8 | 33~48VDC | 0.90~0.63A | 30W | FIG3 |
