| Power Supply: GPSU06 Series - SAA and UK |
Plug-in power supply
|
Feature:
|
|
||
Universal
input voltage
| Specifications: | GPSU06 Series |
| Input voltage | 100-240 VAC (limits: 90-264VAC) |
| Input frequency | 47 to 63Hz (Limits: 47-440Hx) |
| Input current | 0.3A (rms) for 115VAC, 0.2A (rms) for 230VAC |
| Safety ground leakage current | 0.25mA max @ 240 VAC 50Hz |
| Output voltage | see rating chart (+/-5% tolerance) |
| Output current | see rating chart |
| Output power range | 6W max |
| Ripple | 1% peak to peak maximum |
| Over voltage protection | N/A |
| Over current protection | Yes (clamp by Zener dode) |
| Temperature coefficient | Yes (For primary-Referenced Direct Drive) (Constant Current Series For Secondary-Referenced Direct Drive) |
| Transient response | max. excursion of 4% or better on all models recovering to 1% of final value within 500uS after a 25% step load change |
| Operating temperature | 0oC ~ +40oC |
| Storage temperature | -40oC to +85oC |
| Relative humidity | 5% to 95% non-condensing |
| Derating | derated from 100% at +40oC to 50% at 70oC |
| Efficiency | 65% minimum at full output |
| Hold-up time | 5 msec minimum |
| Line regulation | +/-1% maximum for any input voltage change between input voltage range |
| Load regulation | +/-5% variation from minimum to maximum output current |
| Insulation resistance | 50M ohm minimum from output to ground |
| Inrush current | 15 AMPS at 115 VAC, or 30 AMPS at 230 VAC at 25oC cold start |
| Withstand voltage | 4242 VDC from input to output |
| Meantime between failure | 50,000 hours minimum at full load at 25oC ambient |
| Emi requirements | meets conduction limits of(a)FCC part 15 Class B (b) CISPR 22.2 |
| Safety requirements | meets or exceeds:(a)UL 60950-1 (B)CSA C22.2 (C)TUV EN60950-1 (D)IEC60 950 |
| Warranty | 1 year |
NOTE:
1. Weight: Approx 70~100g
2. Optional output connectors
*THIS UNIT MAY ADD UP EXTRA FUNCTIONS AS:CONSTANT CURRENT LIMIT

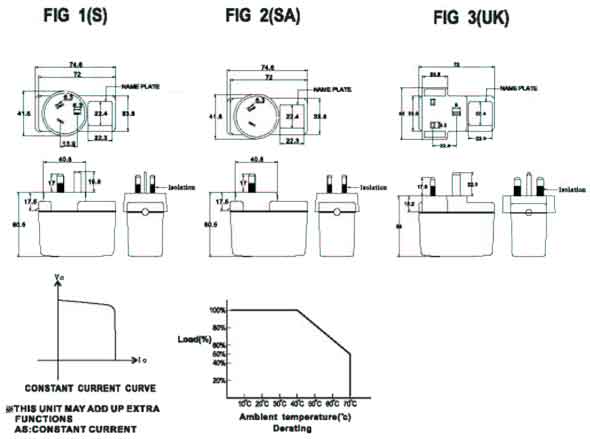

UNIT :mm

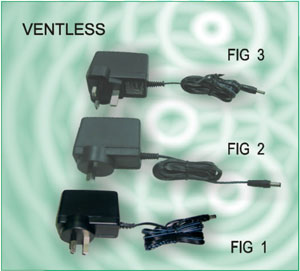

X =S 3 Pin Australia type (FIG 1) or SA 2 Pin Australia type (FIG 2) or BS England type (FIG 3)
| Model | Output Voltage | Output Current | Maximum Output Power |
| GPSU06-0-X | 3~5VDC | 1.33~0.80A | 4W |
| GPSU06-1-X | 5~6VDC | 1.00~0.80A | 5W |
| GPSU06-1-1-X | 6~8VDC | 1.00~0.75A | 6W |
| GPSU06-2-X | 8~11VDC | 0.75~0.54A | 6W |
| GPSU06-3-X | 11~13VDC | 0.54~0.46A | 6W |
| GPSU06-4-X | 13~16VDC | 0.46~0.37A | 6W |
| GPSU06-5-X | 16~21VDC | 0.37~0.28A | 6W |
| GPSU06-6-X | 21~27VDC | 0.28~0.20A | 6W |
| GPSU06-7-X | 17~33VDC | 0.20~0.18A | 6W |
| GPSU06-8-X | 33~48VDC | 0.18~0.12A | 6W |
